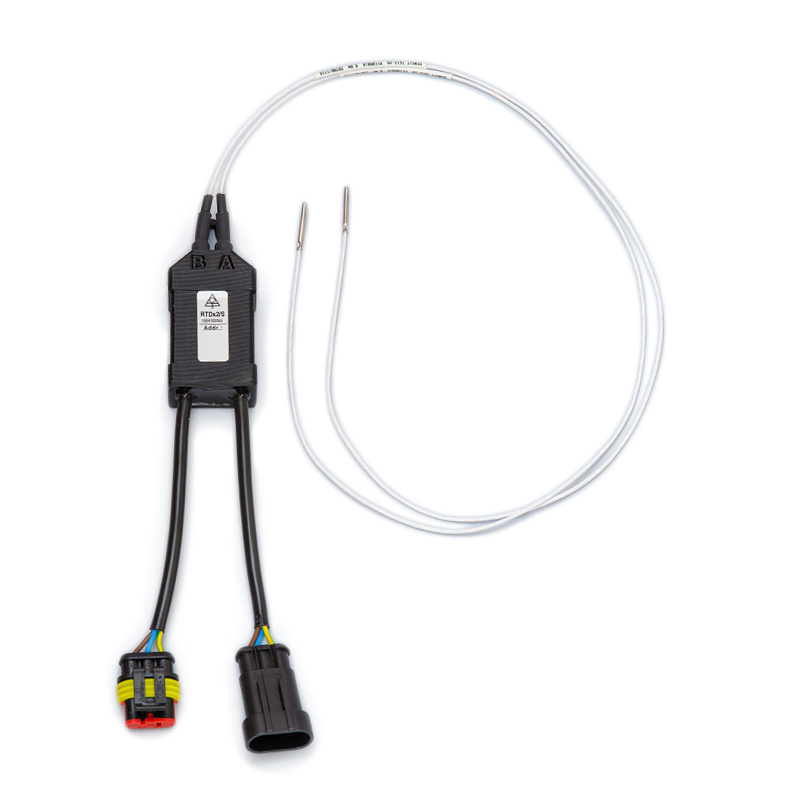

Double temperature sensor RTDx2/S

Product Group: Sensors
E MS R TDx 2 S- 3+
E MS R TDx 2 S- 8+
E MS R TDx 2 S- 4
E MS Pt 1 XXX- 1
Double temperature sensor with SDI-12 output; double connection for easy connection to SDI-12 networkDouble temperature sensor with SDI-12 output; connector for connection to MicroLog SDI-MP dataloggerTemperature sensor Pt1000/8 housed in ⌀2 x 20 mmTemperature sensor Pt1000/8 housed in ⌀8 x 48 mm
  • manufactured bylogo small
  • set of two temperature sensors Pt1000/8
  • sensors in ø8 x 48 mm or ø2 x 20 mm housing
  • digital SDI-12 output
  • fully watertight
  • Superseal connectors for easy connection to SDI-12 network

Specification

Output SDI-12 version 1.3
Temperature range  –40 to 60 °C
Temperature accuracy ±0.15 °C
Protection rating IP68
Operating environment temperature  –40 to 60 °C
Operating environment humidity 0 to 100%

Download

documentdocument 2 Datasheet
