Air T and RH sensor EMS 33S

Product Group: Sensors

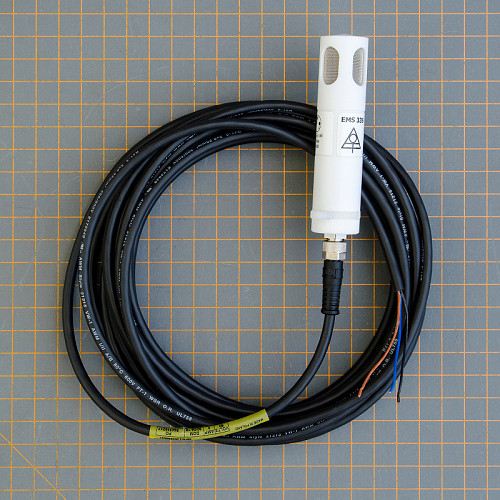

E MS 33 S- 4
E MS 33 S- 1
E MS 33 S- 7
Air temperature and humidity sensor EMS 33SReplaceable measuring chipInstallation in radiation shield Al 060
  • manufactured bylogo small
  • small sensor for measurement of air temperature and humidity
  • replaceable measuring chip by customer – cheaper than recalibration
  • digital SDI-12 output
  • compatible with radiation shield Al060 and Al061

Specification

Output SDI-12 version 1.3
Temperature measuring range  –40 to 60 °C
Temperature accuracy 0.15 °C
Humidity measuring range 0 to 100%
Humidity accuracy ±2%
Size (diameter x length) 22 x 92 mm
Weight 26 g
Operating environment temperature  –40 to 60 °C
Operating environment humidity 0 to 100%

Easily repleaceable measuring chip

replace chip E MS 33
  • feasible directly on site
  • no interruption of measurement continuity
  • cheaper than recalibrations

Application with radiation

E MS 33 S H A L 061 2
  • prevents the sensor against heating from direct and reflected sunrays
  • shelters the sensor from adverse weather
  • allows adequate airflow to ventilate the sensor
  • compatible with radiation shield Al060 or Al061 with holder for pyranometer or PAR sensor

SDI-12 data output

  • asynchronous serial communications protocol for intelligent micro-processor based sensors
  • sensor typically takes a measurement, makes computations based on the raw sensor reading, and outputs the measured data in engineering units
  • allows connection of set of sensors serially on one cable line
