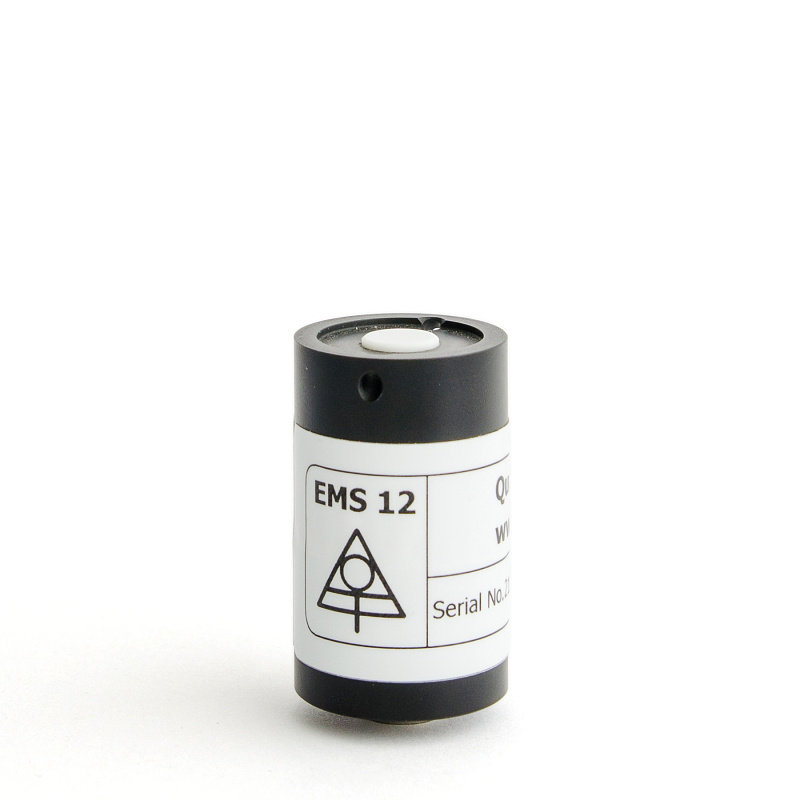

PAR sensor EMS 12

Product Group: Sensors
  • manufactured bylogo small
  • small sensor for measurement of PAR
  • wave length range 400 to 700 nm
  • glass optics
  • silicon semiconductor photovoltaic detector
  • voltage output
  • compatible with radiation shields with holder AL 0171

Specification

Output Voltage
Sensitivity 15 mV per 2000 µmol s-1 m2
Linearity Better than 1%
Cosine error <10% up to 85° angle of incidence
Protection rating IP68
Size (diameter x length) 22 x 39 mm
Weight 30 g
Operating environment temperature  –40 to 60 °C
Operating environment humidity 0 to 100%

Glass optics

D SC  0667
  • more stable than plastic optics
  • less frequent calibration requirements
  • great cosine response

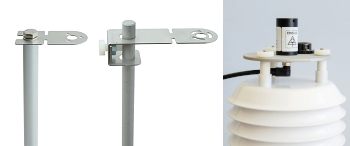

Water level adjustable mounting

E MS  11 holders
  • plate on top of stick
  • verically sliding plate on pin
  • plate compatible with radiation shield

Download

documentdocument 2 Datasheet
