• manufactured bylogo small

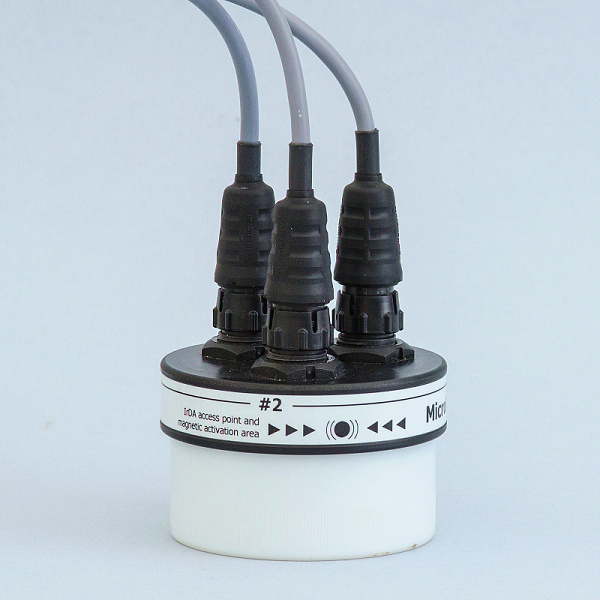

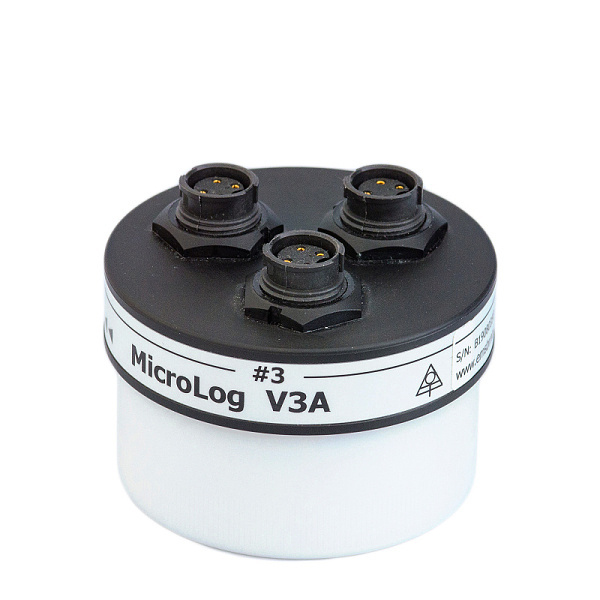

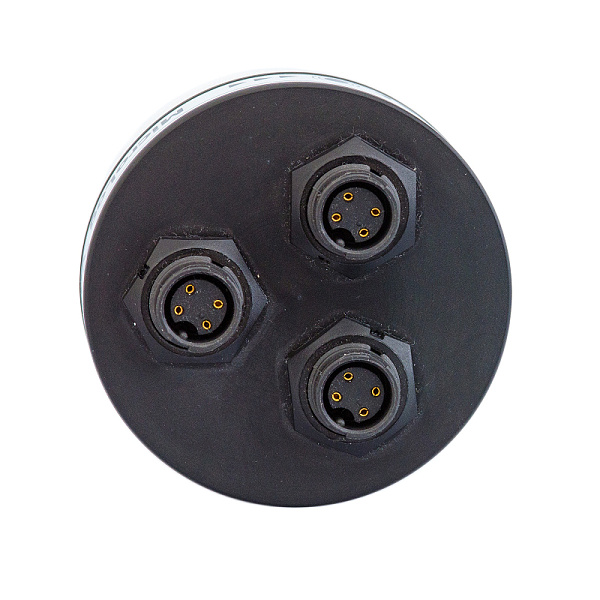

  • small three-channel general purpose datalogger
  • voltage input
  • intended for long-term monitoring in harsh environment
  • low maintenance, easy installation and set-up
  • large logging capacity
  • powered by long lasting battery

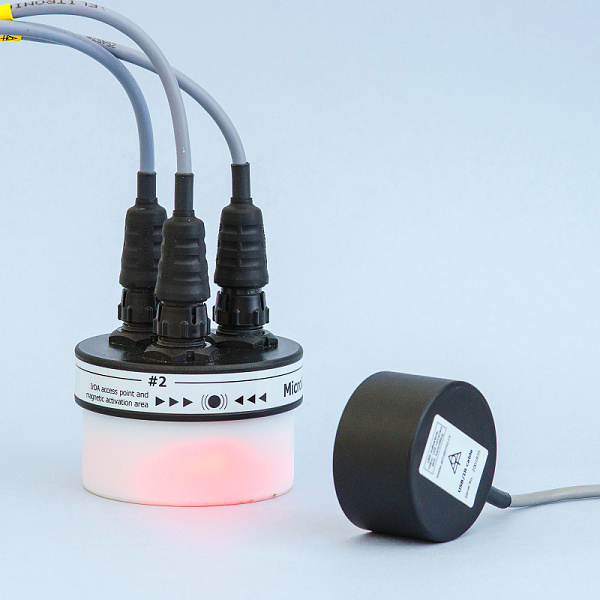

  • infrared wireless data access
  • Mini32 software support


Input voltage (± 20 mV up to ± 2400 mV)
Exciting voltage 3 V
Memory size 256 kB
Memory capacity 100 000 records
Maximum sensors to be connected 3
Measuring interval 3 sec to 4 hrs (depends on number of sensors)
Battery type SAFT LS14250CNA
Protection rating IP68
Size (diameter x length) 70 x 55 mm (incl. connectors)
Weight 115 g (incl. battery)
Operating environment temperature  –40 to 60 °C
Operating environment humidity 0 to 100%

Mini32 software

Mini 32 P C app
  • graphically oriented software intended for work with long time series
  • fast calculation of hourly, daily, montly values
  • fast brief statistics
  • built-in efficient commands for summation and min-max-average calculation


documentdocument 2 Datasheet

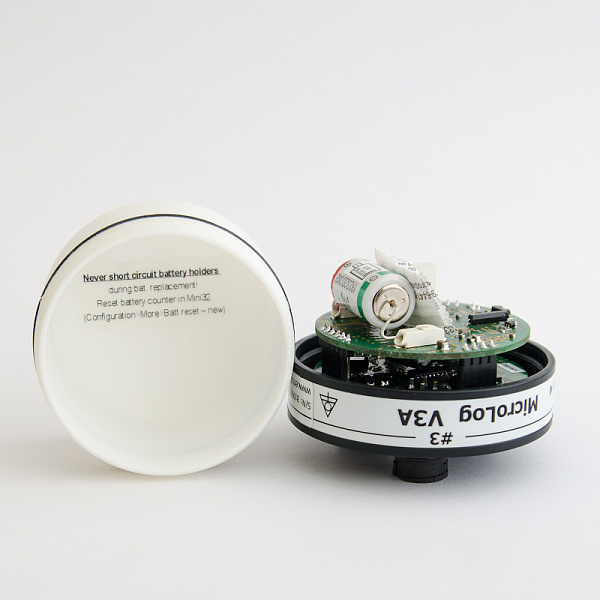

documentdocument 2 Battery replacement instructions


Compatible with
