Micro Log T 3
Soil temperature set
E MS Micro Log T 3- 5

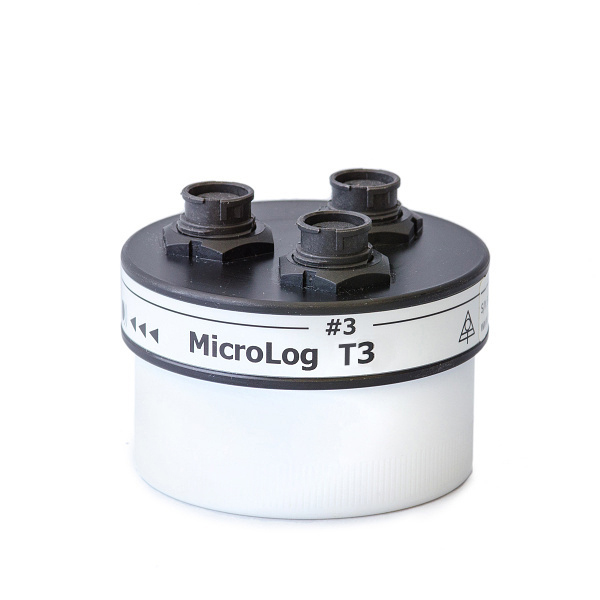

Datalogger MicroLog T3Datalogger MicroLog T3 with three temperature sensors Pt1000Microlog T3 infrared data downloading
  • manufactured bylogo small
  • small datalogger MicroLog T3 designed for temperature measurement with Pt1000 sensors
  • low maintenance, easy installation and set-up
  • large logging capacity and long battery lifetime
  • infrared wireless data access
  • Mini32 software support

Specification

Measuring range  –40 to 60 °C
Accuracy ± 0.15 °C
Acceptable sensors RTD Pt1000 A-class
Measuring intervals 5 min to 4 hrs
Memory capacity with measuring interval 1 hour ca 2 years
Battery life with measuring interval 1 hour ca 5 years
Protection rating IP68
Operating environment temperature  –40 to 60 °C
Operating environment humidity 0 to 100%

Mini32 software

Mini 32 overview
  • graphically oriented software intended for work with long time series
  • fast calculation of hourly, daily, montly values
  • fast brief statistics
  • built-in efficient commands for summation and min-max-average calculation

Download

documentdocument 2 Datasheet
documentdocument 2 Battery replacement instructions

Accessories

IrDA/USB communication cable
Ir DA U SBcommunicationcable

Compatible sensors

Soil temperature sensor Pt1000/8
Soiltemperaturesensor Pt 10008

Used in Standard sets

Soil temperature set
Soiltemperatureset
