Sap flow system EMS81 SDI-12
Product Group:
Sapflow Systems
Sap flow system EMS62
Sap flow system EMS64 SDI-12
Sap flow system EMS64 with datalogger
Sap flow system EMS81 SDI-12
Sap flow system EMS81 with datalogger

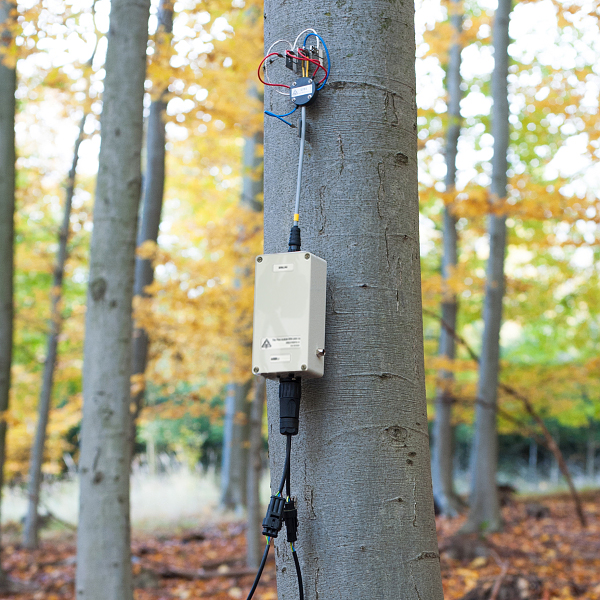

Sap flow system EMS81 installed on tree

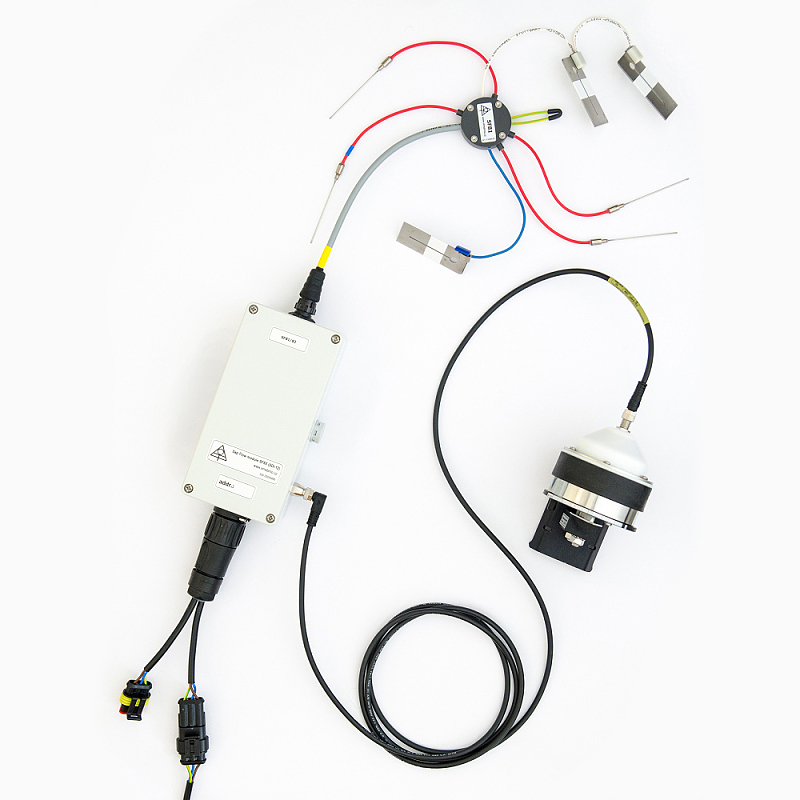

Sap flow system EMS SF 81 with module SF 8X (SDI-12)
Sap flow module SF8X (SDI-12)
Measuring unit MicroSet 8X with embedded datalogger
Sap Flow sensor SF81
Connection of modules with the datalogger
manufactured by
based on tissue heat balance (THB) method with variable power and constant dT
for stems from 12 cm DBH
values in kg/h per plant or kg/h per cm of stem circumference
digital SDI-12 output
input for stem increment sensor
constant temperature difference adjustable to 1, 2 or 3K
Mini32 software support
Precise tool for assessment of tree water regime
efficient tool for field measurement
no overheating of stem tissues
gives realistic picture of tree water status
calculating of NET sapflow possible using the Mini32 software with built-in commands
users of third party dataloggers refer to this
article
for helpfull informations
Sap flow system EMS SF 81 (SDI-12) main parts
sap flow module SF 8X (SDI-12)
sap flow sensor SF 81
set of stainless electrodes
weather shields and connecting cables
stem increment sensor DR26E
datalogger
Mini32 software
graphically oriented software intended for work with long time series
fast automatic subtraction of sap flow baseline
fast brief statistics
built-in efficient commands for calculating of baseline
