Minikin THi

Product Group:

Product is no longer available – see the upgraded model Minikin TH2

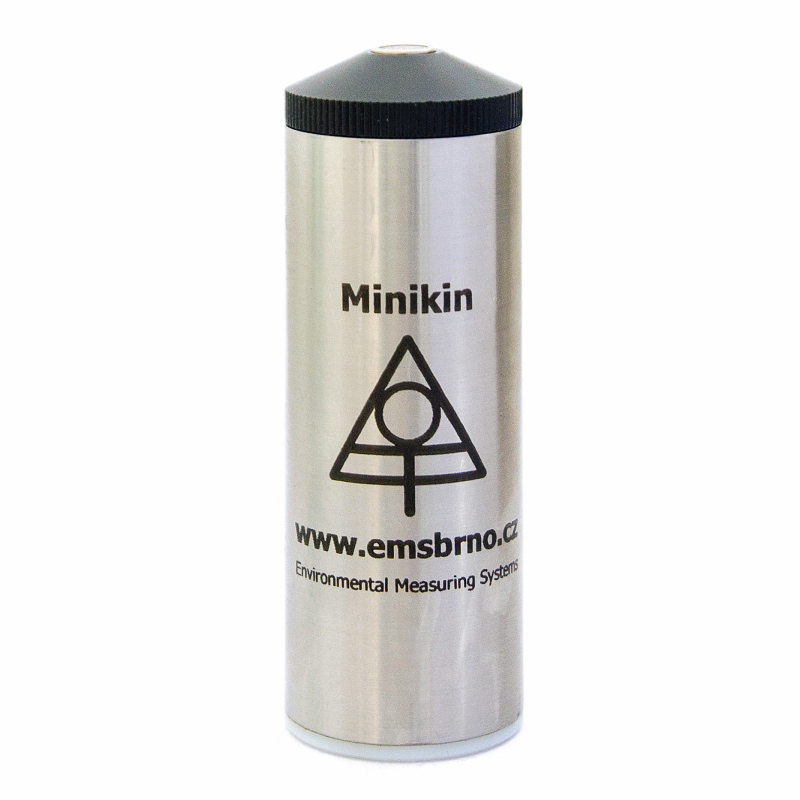

Temperature and humidity logging sensor	Detail of humidity sensor	Minikin THi in radiation shield	Minikin THi infrared data downloading

manufactured by

small datalogger with built-in sensors for air temperature and humidity

intended for long-term monitoring

low maintenance, easy installation and set-up

powered by long-lasting battery

large logging capacity and long battery lifetime

infrared wireless data access

compatible with radiation shield Al 073

Mini32 software support

Specification

Measuring intervals	3 sec to 4 hrs
Memory capacity with measuring interval 1 hour	ca 6 years
Battery life with measuring interval 1 hour	ca 5 years
Temperature accuracy	± 0.15 °C
Relative humidity accuracy	± 2 % RH
Protection rating	IP60
Protection rating when mounted in radiation shield	IP63
Size (diameter x length)	30 x 84 mm
Weight	89 g
Operating environment temperature	–40 to 60 °C
Operating environment humidity	0 to 100%

Application with radiation shield Al 073

Minikin T Hi radiation shield 2

prevents the sensor against heating from direct and reflected sunrays

shelters the sensor from adverse weather

allows adequate airflow to ventilate the sensor

Outdoor mounting possibilities

Supporting pin with anchoring

Crossarm for attachment on tree

Crossarm for attachment on pole

Rope for hanging the sensor

Supporting pin

Tree arm

Pole arm

Hanging

Mini32 software

Mini 32 overview

graphically oriented software intended for work with long time series

fast calculation of hourly, daily, montly values

fast brief statistics

built-in efficient commands for summation and min-max-average calculation

for more informations look at EMSsoftware

Download

documentdocument 2

documentdocument 2

Battery replacement instructions

For retired products find the manuals in Downloads
