Soil water potential set
Product Group:
Standard Sets
Pivot dendrometer set
Precipitation gauge
Simple PET station
Soil temperature set
Soil water potential set
Soil water content set
TDR soil water content set
Fuel temperature and moisture set
Temperature set with thermocouples
Flexible soilset
Throughfall collector set
Water level set
Wind speed and direction set

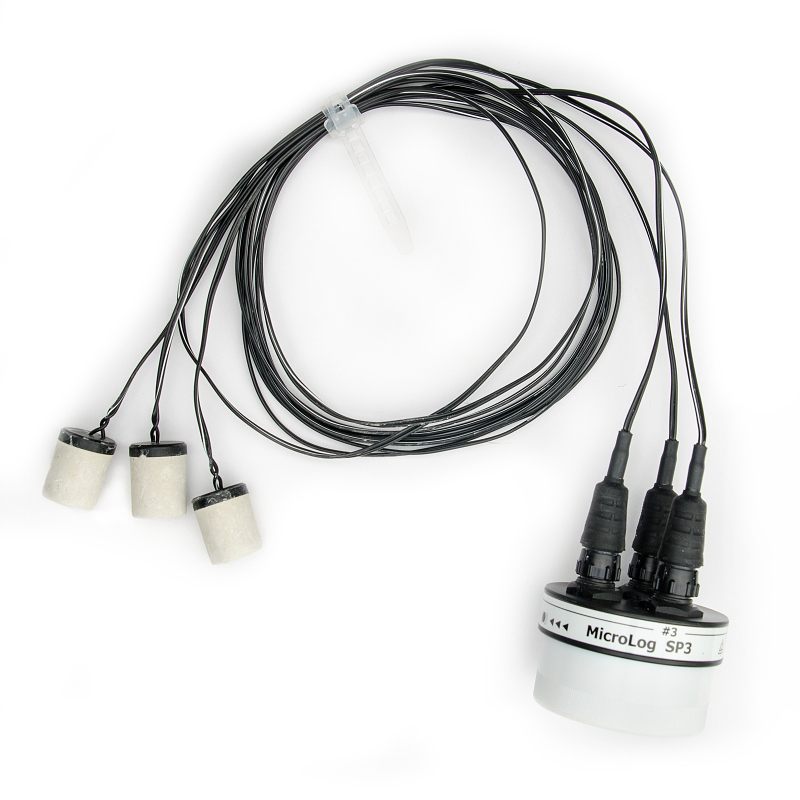

Datalogger Microlog SP3 with three soil water potential sensors
Datalogger MicroLog SP3 intended for soil water potential measurement
Delmhorst Gypsum block and Watermark sensor
Microlog SP3 infrared data downloading
small datalogger MicroLog SP3 with three soil water potential sensors
SWP measured by Delmhorst Gypsum block or Watermark sensors
built-in datalogger temperature sensor
low maintenance, easy installation and set-up
large logging capacity and long battery lifetime
infrared wireless data access
Mini32 software support
Specification
Memory size
256 kB
Measuring range
0 to 35 kOhm (0 to –1.44 MPa)
Resolution
16 bits
Measuring intervals
10 min to 4 hrs
Memory capacity with measuring interval 1 hour
ca 1.5 years
Battery life with measuring interval 1 hour
ca 2 years
Internal temperature accuracy
± 0.3 °C
Protection rating
IP68
Size of datalogger (diameter x length)
70 x 52 mm (incl. connectors)
Weight
110 g
Operating temperature
–40 to 60 deg. C
Operating humidity
0 to 100%
Soil water potential sensors
absorbs or releases moisture from the soil, until its moisture content approaches equilibrium with the moisture content of the soil
for irrigation purposes is important amount of water which can be extracted from the soil by the roots of the plants, and not only volumetric water content
Delmhorst conversion graph
Mini32 software
graphically oriented software intended for work with long time series
fast calculation of hourly, daily, montly values
fast brief statistics
built-in efficient commands for summation and min-max-average calculation
for more informations look at
EMSsoftware
Download
Datasheet
Battery replacement instructions
Accessories
IrDA/USB communication cable
Compatible sensors
Soil water potential sensor Delmhorst
Soil water potential sensor Watermark
Main parts
Datalogger MicroLog SP3
