Simple PET station – measuring of global radiation, air temperature and humidity

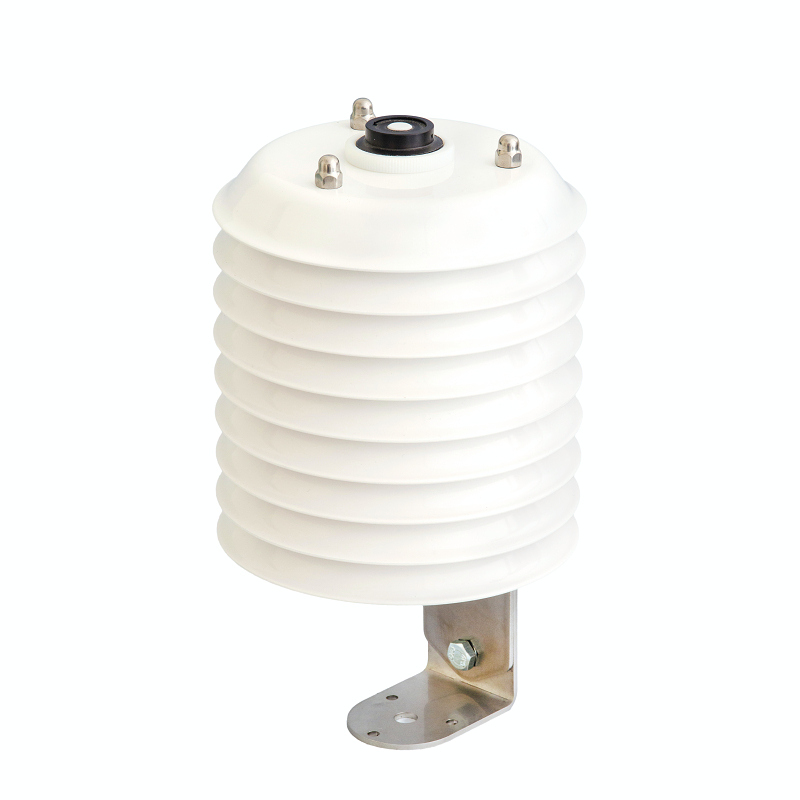

Radiation (global or PAR), temperature and humidity logging sensor
Detail of radiation sensor
Minikin RTHi/QTHi sensor body replacing from radiation shield
manufactured by
small datalogger Minikin RTHi with built-in sensors for air temperature, humidity and global radiation
sensor in radiation shield, attached on 2m supporting pin with anchoring
intended for long-term monitoring
glass optics
low maintenance, easy installation and set-up
powered by long-lasting battery
large logging capacity
infrared wireless data access
Mini32 software support
Specification
Measuring intervals
3 sec to 4 hrs
Memory capacity with measuring interval 1 hour
ca 4 years
Battery life with measuring interval 1 hour
ca 4 years
Temperature accuracy
± 0.15 °C
Rdaiation accuracy
± 5 %
Relative humidity accuracy
± 2 % RH
Size (diameter x length)
120 x 200 mm
Weight
685 g
Operating temperature
–40 to 60 °C
Operating humidity
0 to 100%
Potential evapo-transpiration
amount of evaporation that would occur if a sufficient water source were available
for complete PET information add wind speed and soil heat flux sensors
Glass optics
more stable than plastic optics
less frequent calibration requirements
Application with radiation shield
prevents direct and reflected sunrays from heating the sensor
shelters the sensor from adverse weather
allows adequate airflow to ventilate the sensor
Mounted on 2 m supporting pin with anchoring
Mini32 software
graphically oriented software intended for work with long time series
fast calculation of hourly, daily, montly values
fast brief statistics
built-in efficient commands for summation and min-max-average calculation
for more informations look at
EMSsoftware
Download
Datasheet
Battery replacement instructions
Accessories
IrDA/USB communication cable
Main parts
Minikin RTHi/QTHi
Supporting pins 14 mm
