Minikin TH2/R

Product Group:

Minikin TH2 built in 3-plate radiation shield


Minikin TH2 in simple radiation shield for hanging inside the canopy	Easily repleaceable measuring chip	Temperature and humidity logging sensor Minikin TH2

manufactured by

small datalogger with built-in air temperature and humidity sensors

intended for long-term monitoring

low maintenance, easy installation and set-up

measuring chip easily replaceable by user on site

large logging capacity and long battery lifetime

infrared wireless data access

installed in radiation shield Al 030

Mini32 software support

Specification

Measuring intervals	30 sec to 4 hrs
Memory capacity with measuring interval 1 hour	ca 6 years
Battery life with measuring interval 1 hour	ca 5 years
Temperature accuracy	± 0.2 °C
Relative humidity accuracy	± 2 % RH
Protection rating	IP60
Protection rating when mounted in radiation shield	IP63
Size (diameter x length)	30 x 103 mm
Weight	79 g
Operating environment temperature	–40 to 60 °C
Operating environment humidity	0 to 100%

Easily repleaceable measuring chip

replace chip T H 2

feasible directly on site

no interruption of measurement continuity

cheaper than recalibrations

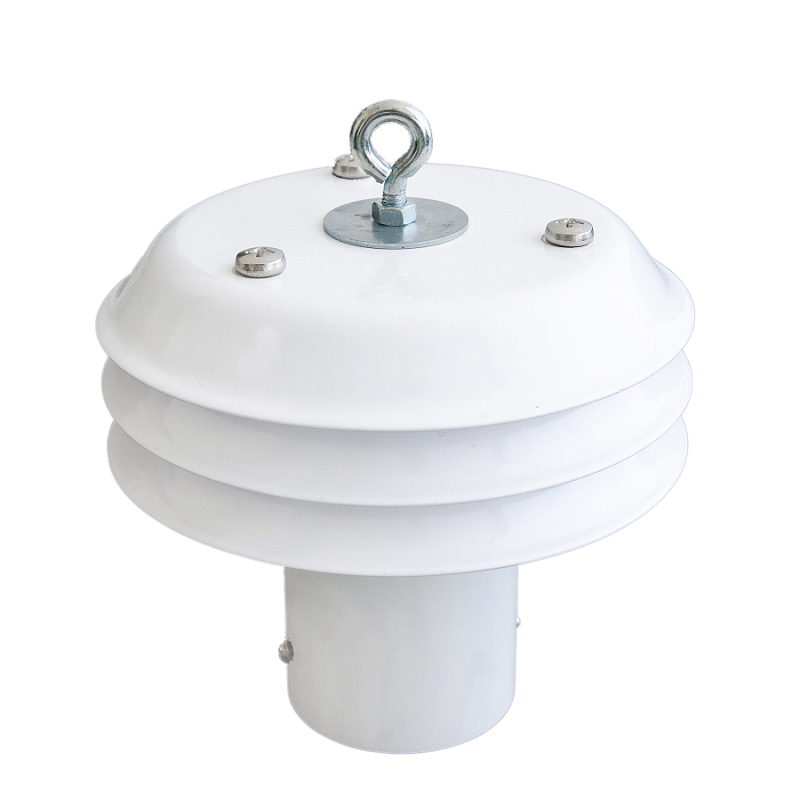

Radiation shield Al 030

E MS Minikin T H 2- 9+

prevents the sensor against heating from direct and reflected sunrays

shelters the sensor from adverse weather

allows adequate airflow to ventilate the sensor

economy solution of 3-plates radiation shield

Mini32 software

Mini 32 overview

graphically oriented software intended for work with long time series

fast calculation of hourly, daily, montly values

fast brief statistics

built-in efficient commands for summation and min-max-average calculation

for more informations look at EMSsoftware

Download

documentdocument 2

documentdocument 2

Measuring chip replace notes

Accessories

IrDA/USB communication cable

Ir DA U SBcommunicationcable

Replaceable measuring chip for Minikin TH2

Replaceablemeasuringchipfor EMS 33
