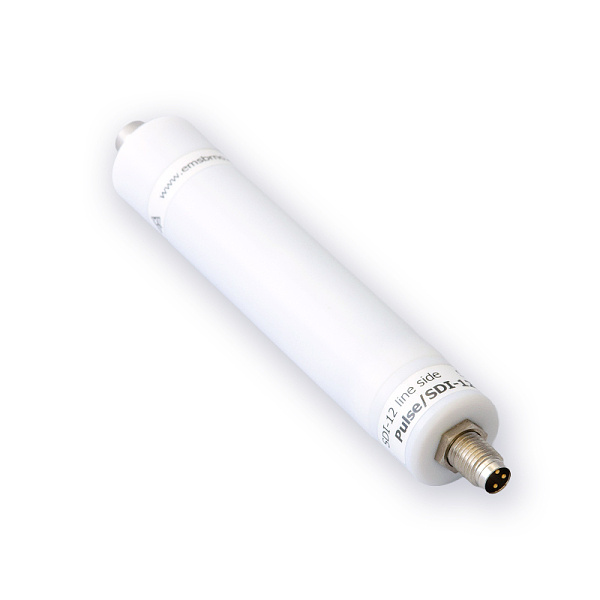

• interface from pulse to SDI-12 digital output
  • intended for tipping bucket rain gauges with reed contact
  • watertight enclosure IP 68
  • manufactured bylogo small


Output SDI-12 ver. 1.3
Input Tipping bucket rain gauge contact (maximal serial resistance 1 kOhm)
Data output Sum of pulses since the last measur. command
Power supply voltage 5 to 16 V (permanent)
Protection rating IP68
Size (diameter x length) 22 x 130 mm (incl. connectors)
Weight 40 g
Operating environment temperature  –40 to 60 °C
Operating environment humidity 0 to 100%


documentdocument 2 Datasheet
