Dendrometer DRT27 LTE

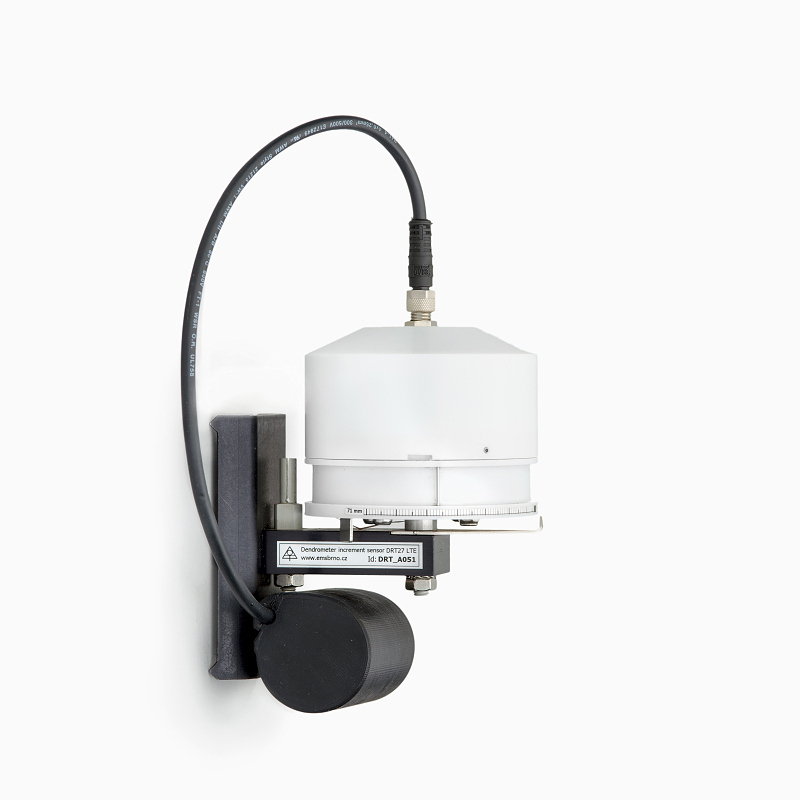

Dendrometer Increment sensor DRT27 LTE	Dendrometer Increment sensor DRT27 LTE on tree

• manufactured by

• sensor for long term on-line accurate monitoring of the tree trunk circumference increment

• built-in LTE modem

• no upper limit in stem diameter

• non invasive fixing

• low maintenance, easy installation and set-up

• increment range 71 mm

• resolution less than micrometer

• Mini32 software support

Specification

Non invasive fixing by tape

• no effect on tree growth

• integrated value for whole radial profile in measured height

• almost identical thermal expansion of wood and stainless steel

• battery replacement possible by keeping the sensor in position on the tree

Precise increment records

• efficient tool for field measurement

• comprises information of growth, water stress and freezing up of the trunk

• low maintenance and energy requirements in comparison with sophisticated measuring systems like sap flow for instance

• together with the measurement of soil water potential it gives realistic picture of drought stress and the tree response to it

World-wide connectivity

• used global SIM card enables use of local operators

• dendrometer finds an available LTE network without the need for further setup

• ready to send data right after installation

Online data visualization on EMScloud website

• measured values clearly displayed in graphs

• online value agregation and integration

• alerts about failures and unexpected events

• view all data in web browsers on different devices

• fast download in several formats

Mini32 software

• graphically oriented software intended for work with long time series

• automatic lining up function for increment records

• curve fitting and growing parameters calculations

• fast brief statistics

• for more informations look at EMSsoftware

Download

Datasheet

Installation manual

Dendrometer Installation

Accessories

Stainless tape ST20
